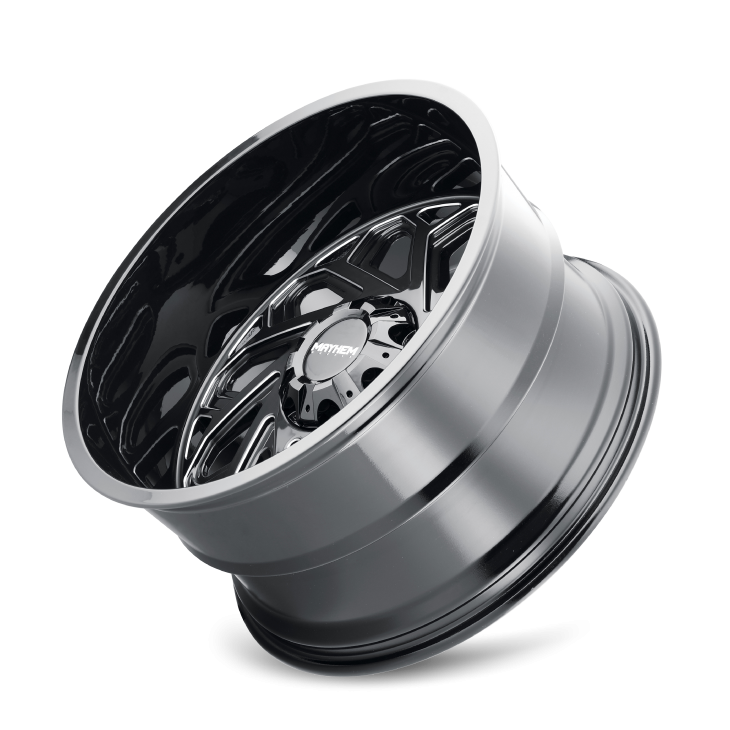

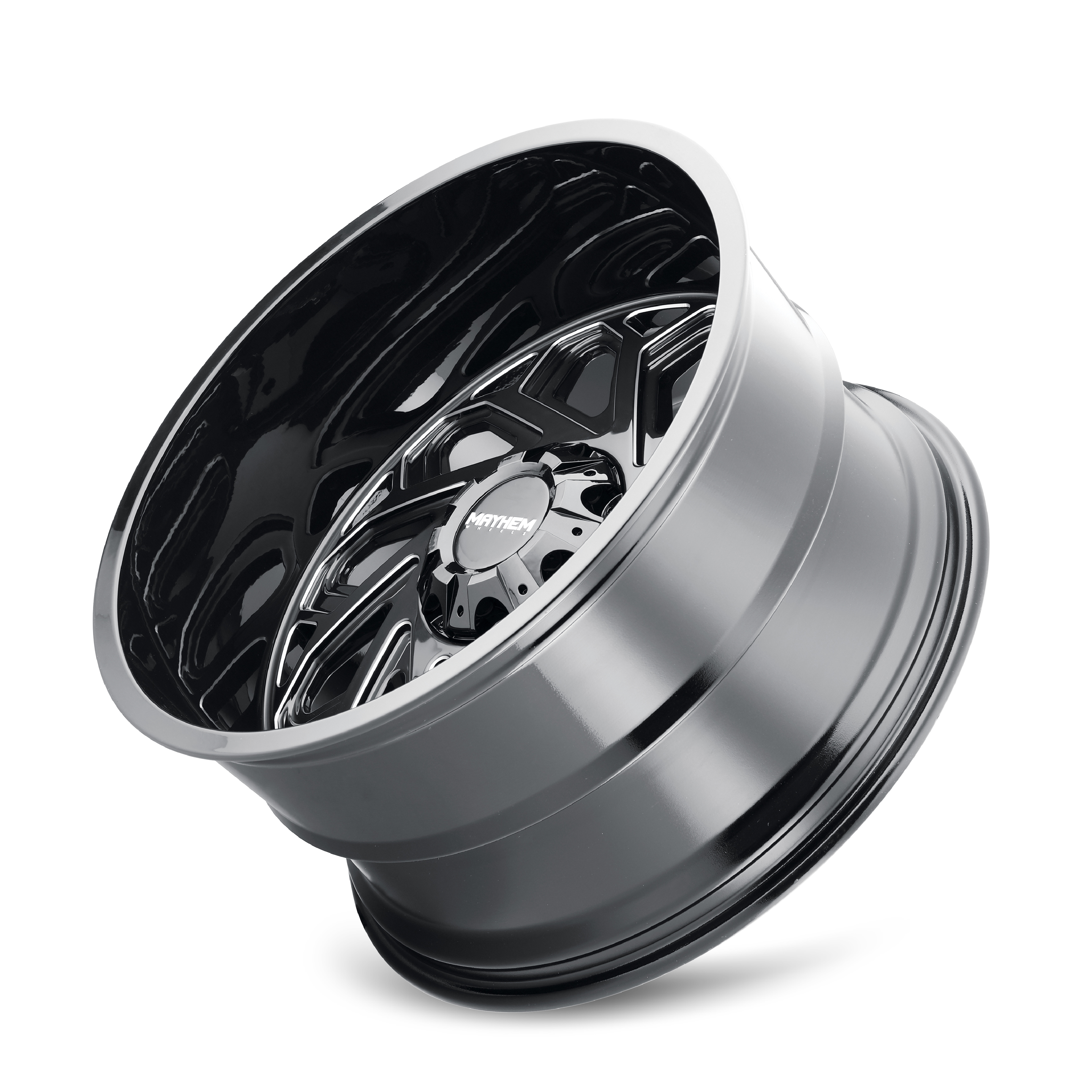

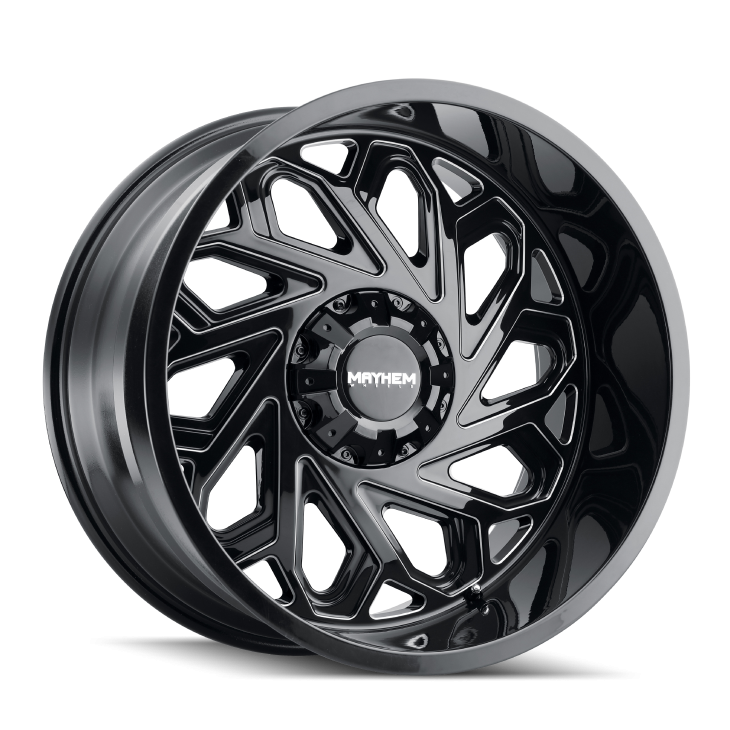

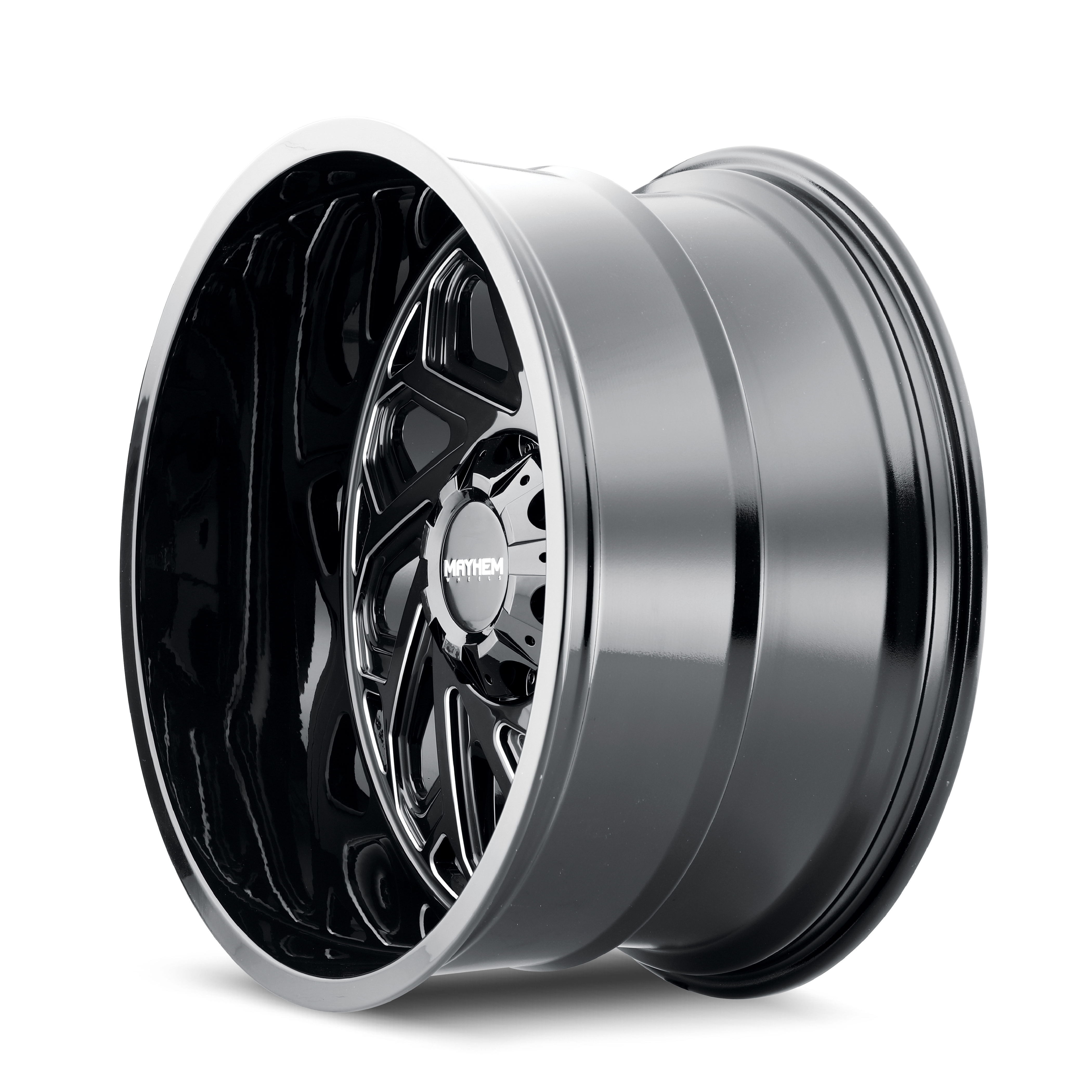

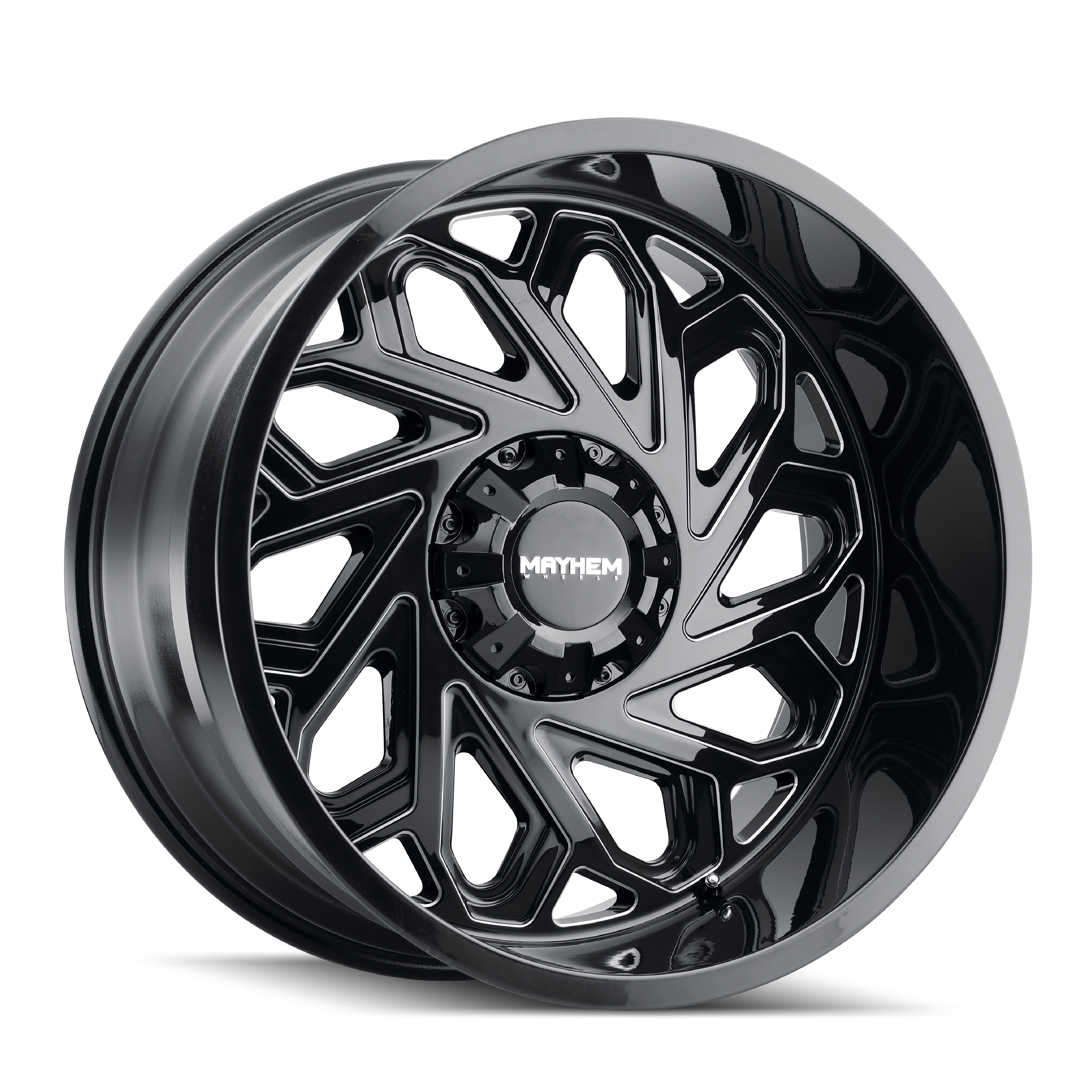

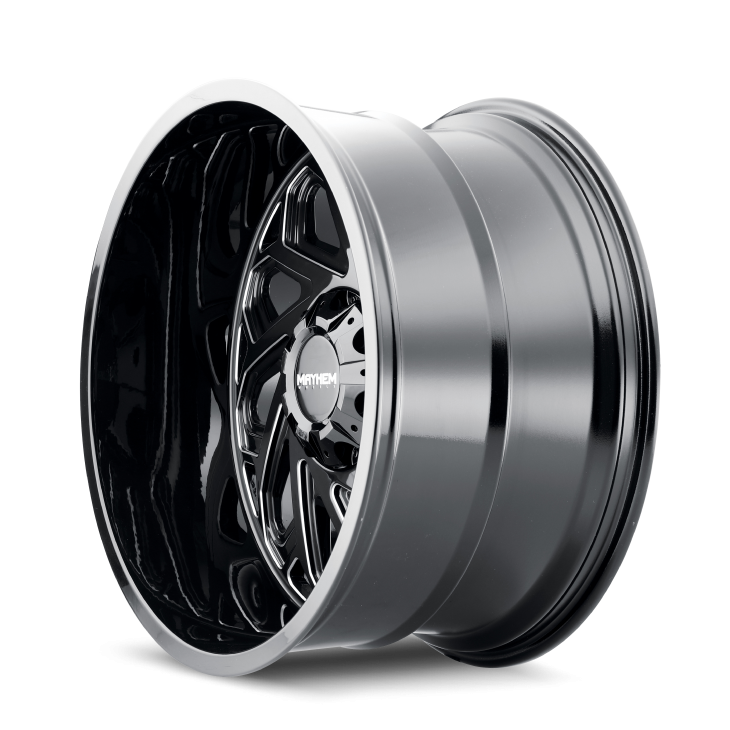

8112 ESSEX
GLOSS BLACK/MILLED SPOKES
| Available Finishes: BLACK |
|
Available Sizes
20x10 | 20x12 | 20x9 | 22x12
Wheel Specs
| SKU | DIAMETER | WIDTH | BOLT PATTERN | BACKSPACE | OFFSET | HUB | LOAD RATING | WEIGHT (LBS) | LIP SIZE | CAP NO |
|---|---|---|---|---|---|---|---|---|---|---|
| 8112-2237BM | 20 | 12 | 6-135/6-139.7 | 4.49 | -51 | 106 | 2500 | 40 | 6.46 | C10TBD |
| 8112-2252BM | 20 | 12 | 5-127/5-139.7 | 4.49 | -51 | 87.1 | 2500 | 40 | 6.46 | C10TBD |
| 8112-2270BM | 20 | 12 | 8-170 | 4.49 | -51 | 125.2 | 3640 | 43 | 6.46 | C10TBD |
| 8112-2281BM | 20 | 12 | 8-165.1 | 4.49 | -51 | 125.2 | 3640 | 43 | 6.46 | C10TBD |
| 8112-22237BM | 22 | 12 | 6-135/6-139.7 | 4.49 | -51 | 106 | 2500 | 44 | 6.46 | C10TBD |
| 8112-22252BM | 22 | 12 | 5-127/5-139.7 | 4.49 | -51 | 87.1 | 2500 | 44 | 6.46 | C10TBD |
| 8112-22270BM | 22 | 12 | 8-170 | 4.49 | -51 | 125.2 | 3640 | 48 | 6.46 | C10TBD |
| 8112-22281BM | 22 | 12 | 8-165.1 | 4.49 | -51 | 125.2 | 3640 | 48 | 6.46 | C10TBD |
| 8112-2137BM | 20 | 10 | 6-135/6-139.7 | 4.75 | -19 | 106 | 2500 | 35 | 4.24 | C10TBD |
| 8112-2152BM | 20 | 10 | 5-127/5-139.7 | 4.75 | -19 | 87.1 | 2500 | 35 | 4.24 | C10TBD |
| 8112-2170BM | 20 | 10 | 8-170 | 4.75 | -19 | 125.2 | 3640 | 40 | 4.24 | C10TBD |
| 8112-2181BM | 20 | 10 | 8-165.1 | 4.75 | -19 | 125.2 | 3640 | 40 | 4.24 | C10TBD |
| 8112-2937BM | 20 | 9 | 6-135/6-139.7 | 5 | 0 | 106 | 2500 | 34 | 2.31 | C10TBD |
| 8112-2952BM | 20 | 9 | 5-127/5-139.7 | 5 | 0 | 87.1 | 2500 | 34 | 2.31 | C10TBD |
| 8112-2970BM | 20 | 9 | 8-170 | 5 | 0 | 125.2 | 3640 | 38 | 2.31 | C10TBD |
| 8112-2981BM | 20 | 9 | 8-165.1 | 5 | 0 | 125.2 | 3640 | 38 | 2.31 | C10TBD |
| 8112-2937BM18 | 20 | 9 | 6-135/6-139.7 | 5.71 | 18 | 106 | 2500 | 33 | 2.31 | C10TBD |
| 8112-2952BM18 | 20 | 9 | 5-127/5-139.7 | 5.71 | 18 | 87.1 | 2500 | 33 | 2.31 | C10TBD |
| 8112-2970BM18 | 20 | 9 | 8-170 | 5.71 | 18 | 125.2 | 3640 | 39 | 2.31 | C10TBD |
| 8112-2981BM18 | 20 | 9 | 8-165.1 | 5.71 | 18 | 125.2 | 3640 | 39 | 2.31 | C10TBD |
