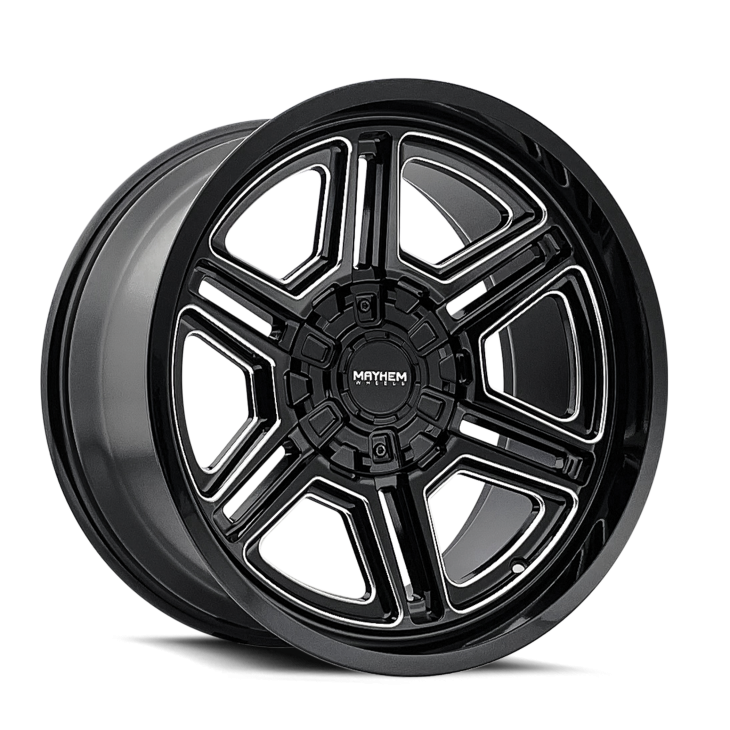

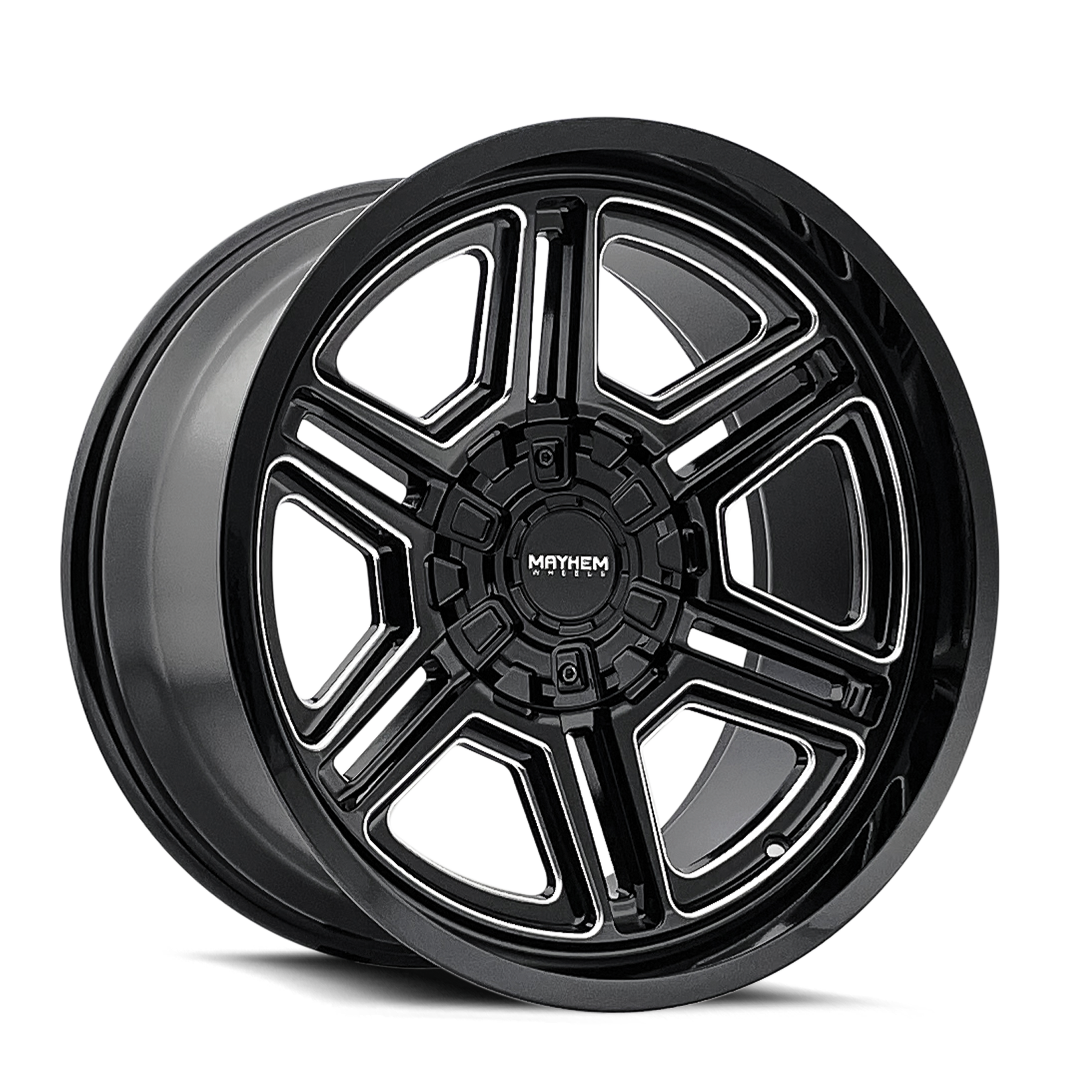

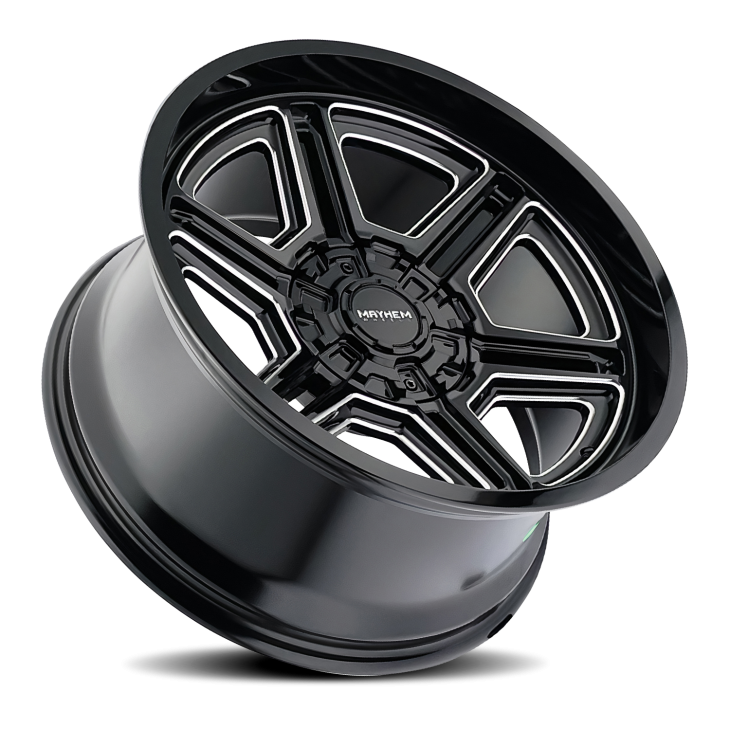

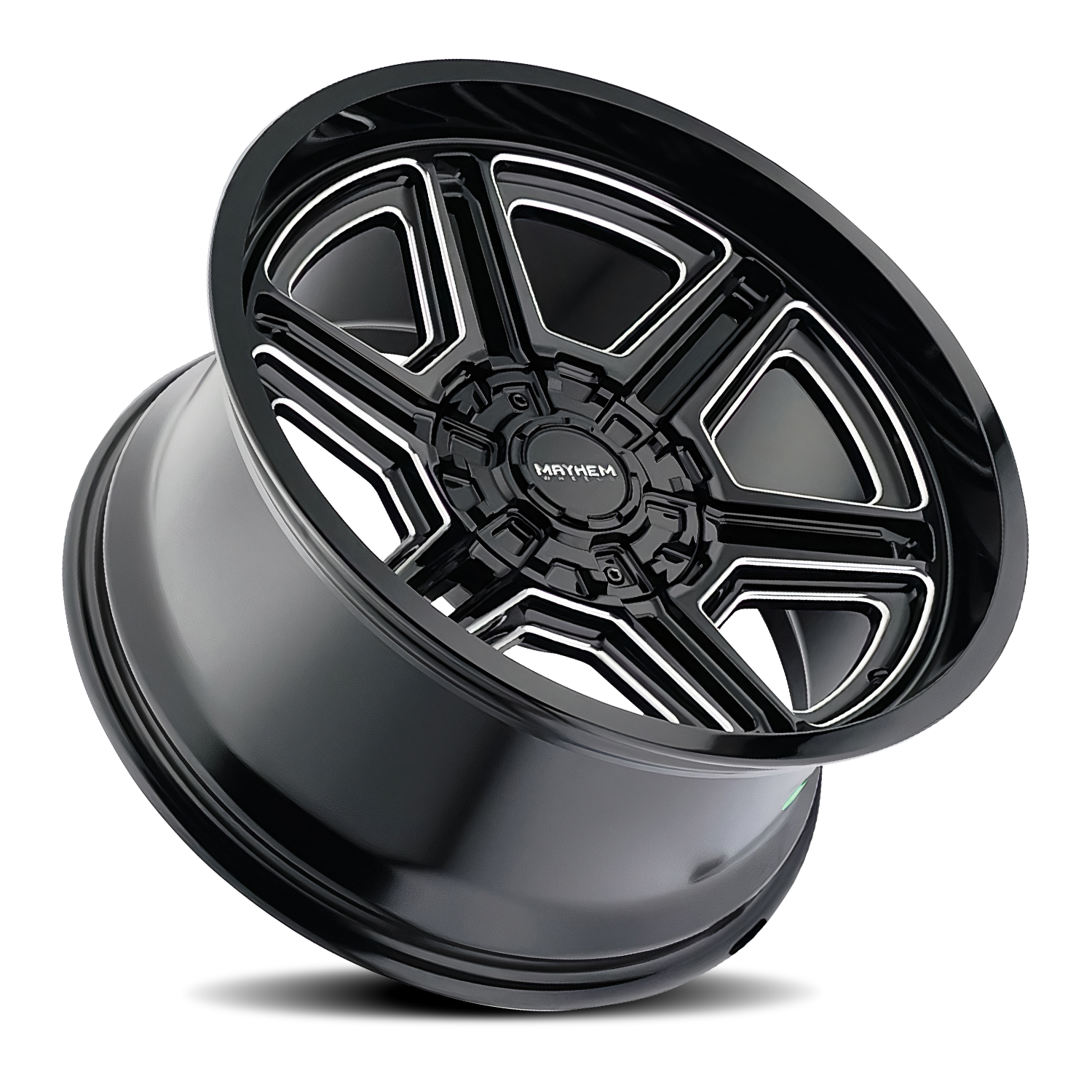

8117 HERMOSA
BLACK MILLED
| Available Finishes: BLACK MILLED |
|
Available Sizes
20x10 | 20x12 | 20x9
Wheel Specs
| SKU | DIAMETER | WIDTH | BOLT PATTERN | BACKSPACE | OFFSET | HUB | LOAD RATING | WEIGHT (LBS) | LIP SIZE | CAP NO |
|---|---|---|---|---|---|---|---|---|---|---|
| 8117-2937BM | 20 | 9 | 6-135/6-139.7 | 5.71 | 18 | 106 | 2500 | 36 | 1.33 | C108117B01 |
| 8117-2952BM | 20 | 9 | 5-127/5-139.7 | 5.71 | 18 | 87 | 2500 | 36 | 1.33 | C108117B01 |
| 8117-2956BM | 20 | 9 | 5-114.3/5-127 | 5.71 | 18 | 87 | 2500 | 36 | 1.33 | C108117B01 |
| 8117-2981BM | 20 | 9 | 8-165.1 | 5.71 | 18 | 130.8 | 3800 | 40 | 1.33 | C108117B02 |
| 8117-2970BM | 20 | 9 | 8-170 | 5.71 | 18 | 125.2 | 3800 | 40 | 1.33 | C108117B02 |
| 8117-2978BM | 20 | 9 | 8-180 | 5.71 | 18 | 124.1 | 3800 | 40 | 1.33 | C108117B02 |
| 8117-2137BM | 20 | 10 | 6-135/6-139.7 | 4.52 | -25 | 106 | 2500 | 36 | 1.89 | C108117B01 |
| 8117-2152BM | 20 | 10 | 5-127/5-139.7 | 4.52 | -25 | 87 | 2500 | 36 | 1.89 | C108117B01 |
| 8117-2156BM | 20 | 10 | 5-114.3/5-127 | 4.52 | -25 | 87 | 2500 | 36 | 1.89 | C108117B01 |
| 8117-2181BM | 20 | 10 | 8-165.1 | 4.52 | -25 | 130.8 | 3800 | 40 | 1.89 | C108117B02 |
| 8117-2170BM | 20 | 10 | 8-170 | 4.52 | -25 | 125.2 | 3800 | 40 | 1.89 | C108117B02 |
| 8117-2178BM | 20 | 10 | 8-180 | 4.52 | -25 | 124.1 | 3800 | 40 | 1.89 | C108117B02 |
| 8117-2237BM | 20 | 12 | 6-135/6-139.7 | 4.77 | -44 | 106 | 2500 | 37 | 3.23 | C108117B01 |
| 8117-2252BM | 20 | 12 | 5-127/5-139.7 | 4.77 | -44 | 87 | 2500 | 37 | 3.23 | C108117B01 |
| 8117-2256BM | 20 | 12 | 5-114.3/5-127 | 4.77 | -44 | 87 | 2500 | 37 | 3.23 | C108117B01 |
| 8117-2281BM | 20 | 12 | 8-165.1 | 4.77 | -44 | 130.8 | 3800 | 41 | 3.23 | C108117B02 |
| 8117-2270BM | 20 | 12 | 8-170 | 4.77 | -44 | 125.2 | 3800 | 41 | 3.23 | C108117B02 |
| 8117-2278BM | 20 | 12 | 8-180 | 4.77 | -44 | 124.1 | 3800 | 41 | 3.23 | C108117B02 |
